Description
BM-40-380Y-N1-P6AC power supply SPD box is mainly applicable tothree phasepower distribution system to protect electrical equipment from the impact of lightning overvoltage, transient overvoltage lightning electromagnetic pulse induced voltagetransient operation and resonance(<100µs) over voltage. BM-40-380Y-N1-P6AC power supply SPD box is widely used in the areas of communicationdevice, electrical equipment, security, transportation, industrial control and aviationfor power protection.
產品特點
- 三相220/380V, 40kA(8/20us) ,TVSS突波保護器
- 符合UL 1449 4th Edition
- 內具UL 1283穩定正弘波(EMI/RFI filter)功能
- 內建感熱斷路保護裝置
- 具三相工作和故障狀態指示灯
- 具遠端狀態警報接點
Remarks
- This device features an internal protection that will disconnect the surge protective component but will maintain power to the load – now unprotected. If this situation is undesirable for the application, follow the manufacturer’s instructions for replacing the device.
- CAUTION: Risk of Electric Shock – Only intended for installation in accordance with National Electrical Code, ANSI/NFPA-70, Article 39
技術參數
| 型號 | BM-40-380Y-N1-P6 |
| 技術參數 | |
| 符合安規 | UL 1449 4th Edition；IEC61643-1；ROHS |
| 元件 | MOV |
| 標稱電壓Un | 3Φ,220/380VAC, 4W+G |
| 最大連續操作電壓 Uc | 275VAC |
| 最大感應雷電流(8/20us)Imax/phase | 40kA/phase |
| 最大Tested open voltage @1.2/50us Uoc | 20kV |
| 保護電壓(殘壓) (VPR)(@20A) Up | 1.5kV |
| 最大短路電流SCCR | 200kA rms |
| 保護模式 | L-N-G |
| 正弦波濾波EMI/RFI | >58dB |
| 反應時間Response Time | 0.5ns |
| 使用環境 | -20 ~ 80℃ / humidity: ≤95％/IP65 |
| 保護模式 | 並聯型 |
| 故障指示 | 指示灯/遙信開關 |
| 接線線徑(Alarm) | #22 AWG |
| 接線線徑(SPD) | #10AWG |
| 尺寸 | 188*120*78mm(L*W*H) |
| 外箱材料 (Outdoor) | Type 4 Aluminum |

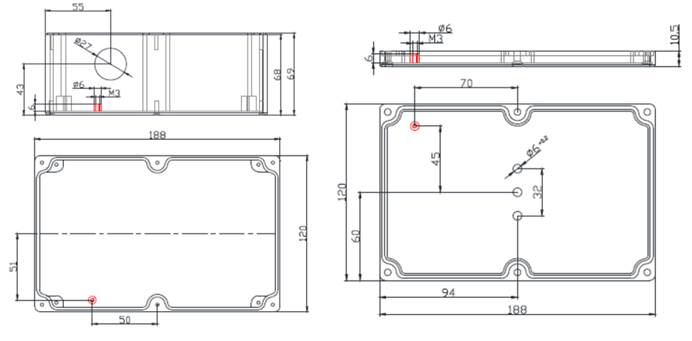

接線示意圖
- 型號：E-Surge BM-40-380Y-N1-P6 V2-2
